Details of one way clutch bearing
General information of Installation and usage for BB series One Way Cam Clutch Bearing
1. BB series Cam Clutch is designed for press fit installation.
2. BB-1K-K and BB-2GD 1K-K series have a keyway on the inner race. Keyways, except size 25 are manufactured to DIN 6885. 3, BB40-1K-K and BB40-2GD 1K-K are manufactured to DIN 6885. 1.
3. BB-2K-K series has a keyway on both the inner and outer race. "-K" means keys shipped together with Cam Clutch.
4. Correct interference dimensions at the shaft and the housing must be maintained to obtain maximum bearing and clutch performance.
5. BB, BB-1K and BB-2K Clutches, bearing supported and delivered with grease have dust seal protection against particles of 0.25mm and over, whereas BB-2GD and BB-2GD-1K clutches, 5mm wider than standard BB series, have special lip seals for effective protection against any dust.

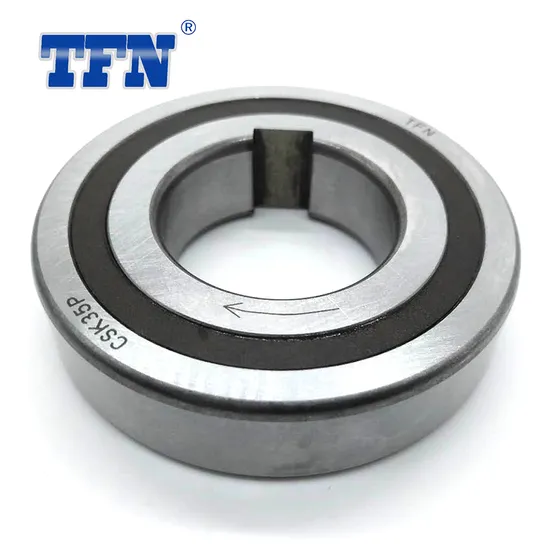

6. The arrow on the inner race shows the direction of inner race engaging.
7.To install the clutch, use a press tool of the appropriate diameter to apply even pressure over the entire face of the inner and outer race.
8.Do not hammer or apply other shock to the clutch.
9.Make sure the housing has enough strength to withstand the pressure required for the press fitting installation of the Clutch.
10.Operating temperature range: -30°C to +100°C (Consult us for the temperature that exceeds this range).
Feature:
1.Compact design
With the function of one-way clutch and bearing In a small space , effectively use of space.
2.Easy to install
For the installation of the shaft or shell, there are two locking methods--Pressing lock and key lock.
3.Lifting torque capacity
A large number of cams are arranged between the inner and outer rings, which can transmit more torque than the shell-shaped roller clutch.
Applications
From low to high speed, widely used, suitable for small, light load applications. The model with oil seal is most suitable for dusty and leakproof occasion. Torque: 29 to 260 N · m (3.0 to 26.5 kgf * m)
|
Product Name |

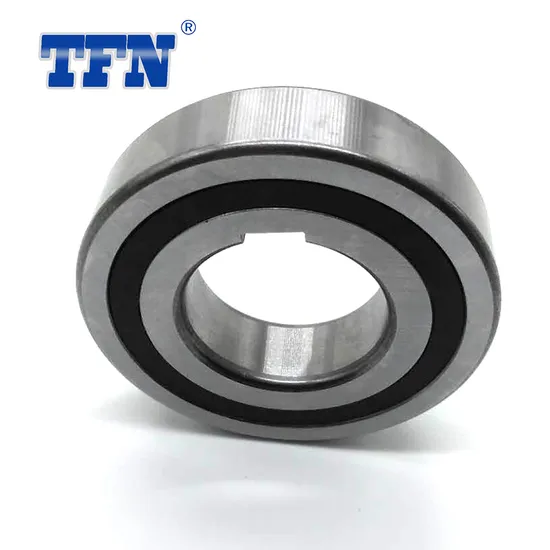

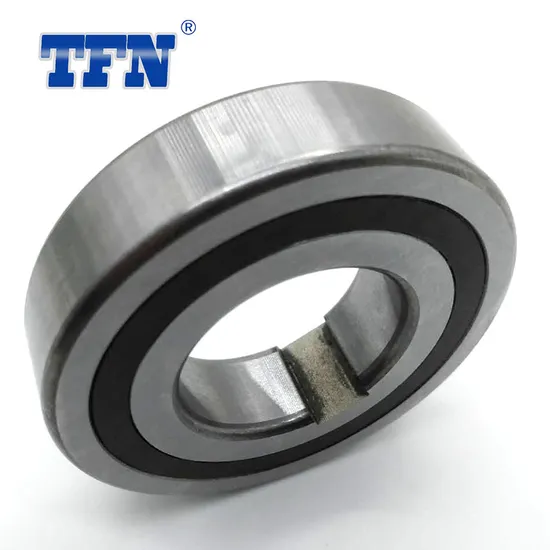

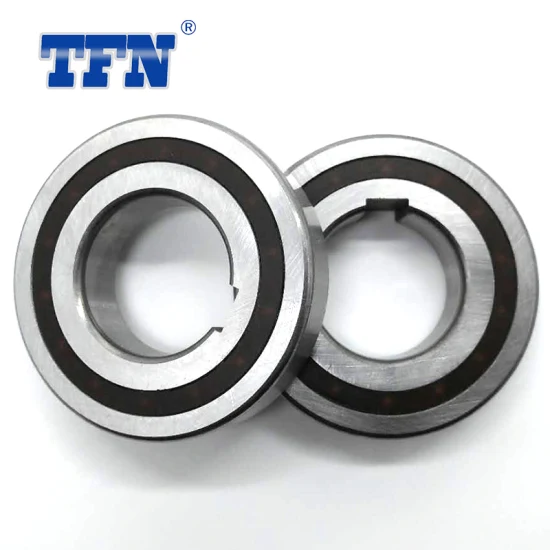

BB40-2K Auto One Way Cam Clutch Bearing with Two Keyways |
|
Model |
BB40-2K |
|
Brand |
TFN / OEM |
|
Dimensions(mm) |
d: 40 |
|
D: 80 |
|
|
B: 22 |
|
|
Weight(kg) |
0.4 |
|
Material |
Chrome steel |
|
Feature |
frame structure, |
|
Application |
Steel Industry, Mining&Construction, Papermaking Machinery, vibrating screens, shakers, conveyors, speed reducers transmissions, and other heavy machinery |
|
Certifications |
ISO 9001:2008 |
|
Service |
OEM and ODM(any brands you want) |
Other one way clutch bearing models :
| Part Number |
Dimension(mm) | ||
| d | D | L | |
| BB15-2K | 15 | 35 | 11 |
| BB17-2K | 17 | 40 | 12 |
| BB20-2K | 20 | 47 | 14 |
| BB25-2K | 25 | 52 | 15 |
| BB30-2K | 30 | 62 | 16 |
| BB35-2K | 35 | 72 | 17 |
| BB40-2K | 40 | 80 | 22 |
Packing of one way clutch bearing
Certificates of TFN bearing
Advantage of TFN bearing
FAQ of one way clutch bearing
1.Q:Are you a factory or trading company?
A:TFN Bearing is specialized in manufacturing and exporting bearings.
TFN Bearing have own factory and warehouse.
2.Q:Can I get some samples and do you offer the sample free?
A:Yes, sure, TFN Bearing are honored to offer you samples.Can you buy a ticket ?
3.Q:What is the payment?
A: 30% T/T In Advance, 70% T/T Against Copy Of B/L
B: 100% L/C At Sight
4.Q:What is the MOQ for bearing?
A: TFN Bearing MOQ is 1 pc.
5.Q:What kind of service you can offer?
A:Technology support;Installation guidance;OEM.
6.Q:You only can supply one way clutch bearing ?
A:No,we also can supply one way deep groove ball bearing and all one way bearing
