6201zz One Side Inner Ring Is Raised Bearing

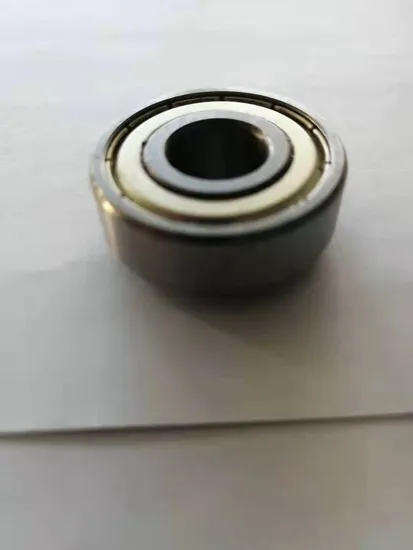

6201zz One Side Inner Ring Is Raised Bearing - 图片 2

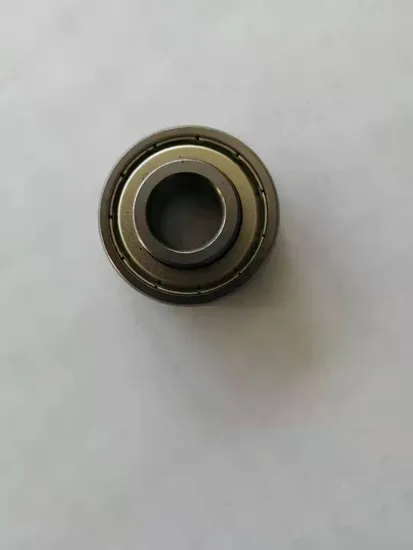

6201zz One Side Inner Ring Is Raised Bearing - 图片 3

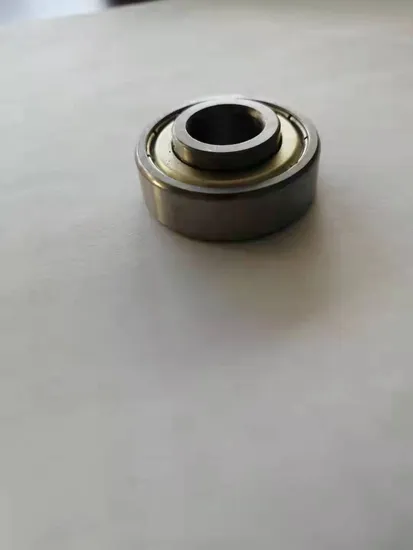

6201zz One Side Inner Ring Is Raised Bearing - 图片 4

Product Parameters

Customization: Available Contact Angle: No Aligning: Non-Aligning Bearing

Basic Info.

Model NO.
6201zz

Separated
Unseparated

Rows Number
Single

Load Direction
Radial Bearing

Material
52100 Chrome Steel (or Equivalent)

Product Name
6201zz One Side Inner Ring Is Raised Bearing

Basic Dynamic Load Rating
6.8 Kn

Basic Static Load Rating
3.05 Kn

Fatigue Load Limit
0.16 Kn

Max Speed (Grease)
22,000 Rpm

Min. Housing Shoulder Dia., Outer (Uo)
27.95 mm

Mass Bearing
0.037 Kg

Certificates
ISO9001,SGS

Key Words
Deep Groove Ball Bearing

Samples
Available

Transport Package
Single Box / OEM

Specification
12x32x10m

Trademark
TFN / OEM

Origin
Shandong, China

HS Code
8482102000

Production Capacity
99999999 PCS /Month

Product Description


6201zz One side inner ring is raised bearing for Motorcycle and Racing


Details of Deep Groove Ball Bearing
6201zz One Side Inner Ring Is Raised Bearing

Name

 6201zz One side inner ring is raised bearing
Bearing Type  Ball Bearing
Model Number 6201-2RS
Size 12x32x10*12.5mm
Basic dynamic load rating 6.8 KN
Basic static load rating 3.05 KN
Fatigue load limit 0.16 KN
Max Speed (Grease) 22000 rpm
Max. Shaft Shoulder Dia. Inner (Ui) 18.5 mm
Min. Housing Shoulder Dia., Outer (Uo) 27.95 mm
Mass bearing 0.048 kg
Material Chrome steel or bearing steel(Gcr15)  Stainless steel / Carbon steel

Cage(Retainer)

Steel, Brass, Nylon

Types

Open / ZZ / 2RS

Quality Level

Reach the same level as Japanese and European Bearing

Delivery time

1.For samples: 1-3days

2.For order: Generally 15-20 days after

Application

Papermaking machinery, speed reducer, railway vehicle axle, gear box bearing, rolling mill rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industry

Feature

High precision, low noise, high speed, long life, high reliability, heavy load and high temperature resistance.

Other Models of 62 Series Deep Groove Ball Bearing



  Bearing Number Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg)
    d D B rs min Cr Cor Grease Oil (Approx.)
62 Series 6200 10 30 9 0.6 5.1 2.39 25,000 30,000 0.032
  6201 12 32 10 0.6 6.1 2.75 22,000 26,000 0.037
  6202 15 35 11 0.6 7.75 3.6 19,000 23,000 0.045
  6203 17 40 12 0.6 9.6 4.6 18,000 21,000 0.066
  6204 20 47 14 1 12.8 6.65 16,000 18,000 0.106
  6205 25 52 15 1 14 7.85 13,000 15,000 0.128
  6206 30 62 16 1 19.5 11.3 11,000 13,000 0.199
  6207 35 72 17 1.1 25.7 15.3 9,800 11,000 0.288
  6208 40 80 18 1.1 29.1 17.8 8,700 10,000 0.366
  6209 45 85 19 1.1 32.5 20.4 7,800 9,200 0.398
  6210 50 90 20 1.1 35 23.2 7,100 8,300 0.454
  6211 55 100 21 1.5 43.5 29.2 6,400 7,600 0.601
  6212 60 110 22 1.5 52.5 36 6,000 7,000 0.783
  6213 65 120 23 1.5 57.5 40 5,500 6,500 0.99
  6214 70 125 24 1.5 62 44 5,100 6,000 1.07
  6215 75 130 25 1.5 66 49.5 4,800 5,600 1.18
  6216 80 140 26 2 72.5 53 4,500 5,300 1.4
  6217 85 150 28 2 83.5 64 4,200 5,000 1.79
  6218 90 160 30 2 96 71.5 4,000 4,700 2.15
  6219 95 170 32 2.1 109 82 3,700 4,400 2.62
  6220 100 180 34 2.1 122 93 3,500 4,200 3.14
  6221 105 190 36 2.1 133 105 3,400 4,000 3.7
  6222 110 200 38 2.1 144 117 3,200 3,800 4.36
  6224 120 215 40 2.1 155 131 2,900 3,400 5.15
  6226 130 230 40 3 167 146 2,700 3,100 5.82
  6228 140 250 42 3 166 150 2,500 2,900 7.57
  6230 150 270 45 3 176 168 2,300 2,700 9.41
  6232 160 290 48 3 185 186 2,100 2,500 11.7
  6234 170 310 52 4 212 223 2,000 2,400 14.5
  6236 180 320 52 4 227 241 1,900 2,200 15.1
  6238 190 340 55 4 255 281 1,800 2,100 18.2
  6240 200 360 58 4 269 310 1,700 2,000 21.6
  6244 220 400 65 4 297 365 1,500 1,800 30.2
  62/22 22 50 14 1 1320 690 14,000 17,000 0.117
  62/28 28 58 16 1 1830 995 12,000 14,000 0.171
  62/32 32 65 17 1 2110 1190 11,000 12,000 0.226
62... Series 62/22-2RDC3P6QE6 22 50 14 1 1320 690 12,000   0.117
  62/22-2RS 22 50 14 1 1320 690 12,000   0.117
  62/22-2RSC3 22 50 14 1 1320 690 12,000   0.117
  62/22-ZZ 22 50 14 1 1320 690 12,000   0.117
  62/22-ZZC3 22 50 14 1 1320 690 12,000   0.117
  62/28-2RDC3P6QE6 28 58 16 1 1830 995 9,700   0.171
  62/28-2RS 28 58 16 1 1830 995 9,700   0.171
  62/28-2RSC3 28 58 16 1 1830 995 9,700   0.171
  62/28-ZZ 28 58 16 1 1830 995 9,700   0.171
  62/28-ZZC3 28 58 16 1 1830 995 9,700   0.171
  62/32-2RDC3P6QE6 32 65 17 1 2110 1190 8,400   0.226
  62/32-2RS 32 65 17 1 2110 1190 8,400   0.226
  62/32-2RSC3 32 65 17 1 2110 1190 8,400   0.226
  62/32-ZZ 32 65 17 1 2110 1190 8,400   0.226
  62/32-ZZC3 32 65 17 1 2110 1190 8,400   0.226
  6200-2RDC3P6QE6 10 30 9 0.6 5.1 2.39 21,000   0.032
  6200-2RS 10 30 9 0.6 5.1 2.39 25,000   0.032
  6200-2RSC3 10 30 9 0.6 5.1 2.39 25,000   0.032
  6200-N 10 30 9 0.6 5.1 2.39 25,000 30,000 0.032
  6200-NR 10 30 9 0.6 5.1 2.39 25,000 30,000 0.034
  6200-RS 10 30 9 0.6 5.1 2.39 30,000   0.032
  6200-RSC3 10 30 9 0.6 5.1 2.39 30,000   0.032
  6200-Z 10 30 9 0.6 5.1 2.39 30,000   0.032
  6200-ZC3 10 30 9 0.6 5.1 2.39 30,000   0.032
  6200-ZNR 10 30 9 0.6 5.1 2.39 25,000 30,000 0.034
  6200-ZZ 10 30 9 0.6 5.1 2.39 25,000   0.032
  6200-ZZC3 10 30 9 0.6 5.1 2.39 25,000   0.032
  6200-ZZC3P6QE6 10 30 9 0.6 5.1 2.39 25,000   0.032
  6201-2RDC3P6QE6 12 32 10 0.6 6.1 2.75 20,000   0.037
  6201-2RS 12 32 10 0.6 6.1 2.75 22,000   0.037
  6201-2RSC3 12 32 10 0.6 6.1 2.75 22,000   0.037
  6201-N 12 32 10 0.6 6.1 2.75 22,000 26,000 0.037
  6201-NR 12 32 10 0.6 6.1 2.75 22,000 26,000 0.039
  6201-RS 12 32 10 0.6 6.1 2.75 26,000   0.037
  6201-RSC3 12 32 10 0.6 6.1 2.75 26,000   0.037
  6201-Z 12 32 10 0.6 6.1 2.75 26,000   0.037
  6201-ZC3 12 32 10 0.6 6.1 2.75 26,000   0.037
  6201-ZNR 12 32 10 0.6 6.1 2.75 22,000 26,000 0.039
  6201-ZZ 12 32 10 0.6 6.1 2.75 22,000   0.037
  6201-ZZC3 12 32 10 0.6 6.1 2.75 22,000   0.037
  6201-ZZC3P6QE6 12 32 10 0.6 6.1 2.75 22,000   0.037
  6202-2RDC3P6QE6 15 35 11 0.6 7.75 3.6 18,000   0.045
  6202-2RS 15 35 11 0.6 7.75 3.6 19,000   0.045
  6202-2RSC3 15 35 11 0.6 7.75 3.6 19,000   0.045
  6202-N 15 35 11 0.6 7.75 3.6 19,000 23,000 0.045
  6202-NR 15 35 11 0.6 7.75 3.6 19,000 23,000 0.047
  6202-RS 15 35 11 0.6 7.75 3.6 23,000   0.045
  6202-RSC3 15 35 11 0.6 7.75 3.6 23,000   0.045
  6202-Z 15 35 11 0.6 7.75 3.6 23,000   0.045
  6202-ZC3 15 35 11 0.6 7.75 3.6 23,000   0.045
  6202-ZNR 15 35 11 0.6 7.75 3.6 19,000 23,000 0.047
  6202-ZZ 15 35 11 0.6 7.75 3.6 19,000   0.045
  6202-ZZC3 15 35 11 0.6 7.75 3.6 19,000   0.045
  6202-ZZC3P6QE6 15 35 11 0.6 7.75 3.6 19,000   0.045
  6203-2RDC3P6QE6 17 40 12 0.6 9.6 4.6 15,000   0.066
  6203-2RS 17 40 12 0.6 9.6 4.6 18,000   0.066
  6203-2RSC3 17 40 12 0.6 9.6 4.6 18,000   0.066
  6203-N 17 40 12 0.6 9.6 4.6 18,000 21,000 0.066
  6203-NR 17 40 12 0.6 9.6 4.6 18,000 21,000 0.068
  6203-RS 17 40 12 0.6 9.6 4.6 21,000   0.066
  6203-RSC3 17 40 12 0.6 9.6 4.6 21,000   0.066
  6203-Z 17 40 12 0.6 9.6 4.6 21,000   0.066
  6203-ZC3 17 40 12 0.6 9.6 4.6 21,000   0.066
  6203-ZNR 17 40 12 0.6 9.6 4.6 18,000 21,000 0.068
  6203-ZZ 17 40 12 0.6 9.6 4.6 18,000   0.066
  6203-ZZC3 17 40 12 0.6 9.6 4.6 18,000   0.066
  6203-ZZC3P6QE6 17 40 12 0.6 9.6 4.6 18,000   0.066
  6204-2RDC3P6QE6 20 47 14 1 12.8 6.65 12,000   0.106
  6204-2RS 20 47 14 1 12.8 6.65 16,000   0.106
  6204-2RSC3 20 47 14 1 12.8 6.65 16,000   0.106
  6204-N 20 47 14 1 12.8 6.65 16,000 18,000 0.106
  6204-NR 20 47 14 1 12.8 6.65 16,000 18,000 0.11
  6204-RS 20 47 14 1 12.8 6.65 18,000   0.106
  6204-RSC3 20 47 14 1 12.8 6.65 18,000   0.106
  6204-Z 20 47 14 1 12.8 6.65 18,000   0.106
  6204-ZC3 20 47 14 1 12.8 6.65 18,000   0.106
  6204-ZNR 20 47 14 1 12.8 6.65 16,000 18,000 0.11
  6204-ZZ 20 47 14 1 12.8 6.65 16,000   0.106
  6204-ZZC3 20 47 14 1 12.8 6.65 16,000   0.106
  6204-ZZC3P6QE6 20 47 14 1 12.8 6.65 16,000   0.106
  6205-2RDC3P6QE6 25 52 15 1 14 7.85 11,000   0.128
  6205-2RS 25 52 15 1 14 7.85 13,000   0.128
  6205-2RSC3 25 52 15 1 14 7.85 13,000   0.128
  6205-N 25 52 15 1 14 7.85 13,000 15,000 0.128
  6205-NR 25 52 15 1 14 7.85 13,000 15,000 0.132
  6205-RS 25 52 15 1 14 7.85 15,000   0.128
  6205-RSC3 25 52 15 1 14 7.85 15,000   0.128
  6205-Z 25 52 15 1 14 7.85 15,000   0.128
  6205-ZC3 25 52 15 1 14 7.85 15,000   0.128
  6205-ZNR 25 52 15 1 14 7.85 13,000 15,000 0.132
  6205-ZZ 25 52 15 1 14 7.85 13,000   0.128
  6205-ZZC3 25 52 15 1 14 7.85 13,000   0.128
  6205-ZZC3P6QE6 25 52 15 1 14 7.85 13,000   0.128
  6206-2RDC3P6QE6 30 62 16 1 19.5 11.3 8,800   0.199
  6206-2RS 30 62 16 1 19.5 11.3 11,000   0.199
  6206-2RSC3 30 62 16 1 19.5 11.3 11,000   0.199
  6206-N 30 62 16 1 19.5 11.3 11,000 13,000 0.199
  6206-NR 30 62 16 1 19.5 11.3 11,000 13,000 0.206
  6206-RS 30 62 16 1 19.5 11.3 13,000   0.199
  6206-RSC3 30 62 16 1 19.5 11.3 13,000   0.199
  6206-Z 30 62 16 1 19.5 11.3 13,000   0.199
  6206-ZC3 30 62 16 1 19.5 11.3 13,000   0.199
  6206-ZNR 30 62 16 1 19.5 11.3 11,000 13,000 0.206
  6206-ZZ 30 62 16 1 19.5 11.3 11,000   0.199
  6206-ZZC3 30 62 16 1 19.5 11.3 11,000   0.199
  6206-ZZC3P6QE6 30 62 16 1 19.5 11.3 11,000   0.199
  6207-2RDC3P6QE6 35 72 17 1.1 25.7 15.3 7,600   0.288
  6207-2RS 35 72 17 1.1 25.7 15.3 9,800   0.288
  6207-2RSC3 35 72 17 1.1 25.7 15.3 9,800   0.288
  6207-N 35 72 17 1.1 25.7 15.3 9,800 11,000 0.288
  6207-NR 35 72 17 1.1 25.7 15.3 9,800 11,000 0.298
  6207-RS 35 72 17 1.1 25.7 15.3 11,000   0.288
  6207-RSC3 35 72 17 1.1 25.7 15.3 11,000   0.288
  6207-Z 35 72 17 1.1 25.7 15.3 11,000   0.288
  6207-ZC3 35 72 17 1.1 25.7 15.3 11,000   0.288
  6207-ZNR 35 72 17 1.1 25.7 15.3 9,800 11,000 0.298
  6207-ZZ 35 72 17 1.1 25.7 15.3 9,800   0.288
  6207-ZZC3 35 72 17 1.1 25.7 15.3 9,800   0.288
  6207-ZZC3P6QE6 35 72 17 1.1 25.7 15.3 9,800   0.288
  6208-2RDC3P6QE6 40 80 18 1.1 29.1 17.8 6,700   0.366
  6208-2RS 40 80 18 1.1 29.1 17.8 8,700   0.366
  6208-2RSC3 40 80 18 1.1 29.1 17.8 8,700   0.366
  6208-N 40 80 18 1.1 29.1 17.8 8,700 10,000 0.366
  6208-NR 40 80 18 1.1 29.1 17.8 8,700 10,000 0.377
  6208-RS 40 80 18 1.1 29.1 17.8 10,000   0.366
  6208-RSC3 40 80 18 1.1 29.1 17.8 10,000   0.366
  6208-Z 40 80 18 1.1 29.1 17.8 10,000   0.366
  6208-ZC3 40 80 18 1.1 29.1 17.8 10,000   0.366
  6208-ZNR 40 80 18 1.1 29.1 17.8 8,700 10,000 0.377
  6208-ZZ 40 80 18 1.1 29.1 17.8 8,700   0.366
  6208-ZZC3 40 80 18 1.1 29.1 17.8 8,700   0.366
  6208-ZZC3P6QE6 40 80 18 1.1 29.1 17.8 8,700   0.366
  6209-2RDC3P6QE6 45 85 19 1.1 32.5 20.4 6,200   0.398
  6209-2RS 45 85 19 1.1 32.5 20.4 7,800   0.398
  6209-2RSC3 45 85 19 1.1 32.5 20.4 7,800   0.398
  6209-N 45 85 19 1.1 32.5 20.4 7,800 9,200 0.398
  6209-NR 45 85 19 1.1 32.5 20.4 7,800 9,200 0.409
  6209-RS 45 85 19 1.1 32.5 20.4 9,200   0.398
  6209-RSC3 45 85 19 1.1 32.5 20.4 9,200   0.398
  6209-Z 45 85 19 1.1 32.5 20.4 9,200   0.398
  6209-ZC3 45 85 19 1.1 32.5 20.4 9,200   0.398
  6209-ZNR 45 85 19 1.1 32.5 20.4 7,800 9,200 0.409
  6209-ZZ 45 85 19 1.1 32.5 20.4 7,800   0.398
  6209-ZZC3 45 85 19 1.1 32.5 20.4 7,800   0.398
  6209-ZZC3P6QE6 45 85 19 1.1 32.5 20.4 7,800   0.398
  6210-2RDC3P6QE6 50 90 20 1.1 35 23.2 5,700   0.454
  6210-2RS 50 90 20 1.1 35 23.2 7,100   0.454
  6210-2RSC3 50 90 20 1.1 35 23.2 7,100   0.454
  6210-N 50 90 20 1.1 35 23.2 7,100 8,300 0.454
  6210-NR 50 90 20 1.1 35 23.2 7,100 8,300 0.471
  6210-RS 50 90 20 1.1 35 23.2 8,300   0.454
  6210-RSC3 50 90 20 1.1 35 23.2 8,300   0.454
  6210-Z 50 90 20 1.1 35 23.2 8,300   0.454
  6210-ZC3 50 90 20 1.1 35 23.2 8,300   0.454
  6210-ZNR 50 90 20 1.1 35 23.2 7,100 8,300 0.471
  6210-ZZ 50 90 20 1.1 35 23.2 7,100   0.454
  6210-ZZC3 50 90 20 1.1 35 23.2 7,100   0.454
  6210-ZZC3P6QE6 50 90 20 1.1 35 23.2 7,100   0.454
  6211-2RS 55 100 21 1.5 43.5 29.2 6,400   0.601
  6211-2RSC3 55 100 21 1.5 43.5 29.2 6,400   0.601
  6211-N 55 100 21 1.5 43.5 29.2 6,400 7,600 0.601
  6211-NR 55 100 21 1.5 43.5 29.2 6,400 7,600 0.62
  6211-RS 55 100 21 1.5 43.5 29.2 7,600   0.601
  6211-RSC3 55 100 21 1.5 43.5 29.2 7,600   0.601
  6211-Z 55 100 21 1.5 43.5 29.2 7,600   0.601
  6211-ZC3 55 100 21 1.5 43.5 29.2 7,600   0.601
  6211-ZNR 55 100 21 1.5 43.5 29.2 6,400 7,600 0.62
  6211-ZZ 55 100 21 1.5 43.5 29.2 6,400   0.601
  6211-ZZC3 55 100 21 1.5 43.5 29.2 6,400   0.601
  6211-ZZC3P6QE6 55 100 21 1.5 43.5 29.2 6,400   0.601
  6212-2RS 60 110 22 1.5 52.5 36 6,000   0.783
  6212-2RSC3 60 110 22 1.5 52.5 36 6,000   0.783
  6212-N 60 110 22 1.5 52.5 36 6,000 7,000 0.783
  6212-NR 60 110 22 1.5 52.5 36 6,000 7,000 0.804
  6212-RS 60 110 22 1.5 52.5 36 7,000   0.783
  6212-RSC3 60 110 22 1.5 52.5 36 7,000   0.783
  6212-Z 60 110 22 1.5 52.5 36 7,000   0.783
  6212-ZC3 60 110 22 1.5 52.5 36 7,000   0.783
  6212-ZNR 60 110 22 1.5 52.5 36 6,000 7,000 0.804
  6212-ZZ 60 110 22 1.5 52.5 36 6,000   0.783
  6212-ZZC3 60 110 22 1.5 52.5 36 6,000   0.783
  6212-ZZC3P6QE6 60 110 22 1.5 52.5 36 6,000   0.783
  6213-2RS 65 120 23 1.5 57.5 40 5,500   0.99
  6213-2RSC3 65 120 23 1.5 57.5 40 5,500   0.99
  6213-N 65 120 23 1.5 57.5 40 5,500 6,500 0.99
  6213-NR 65 120 23 1.5 57.5 40 5,500 6,500 1.03
  6213-RS 65 120 23 1.5 57.5 40 6,500   0.99
  6213-RSC3 65 120 23 1.5 57.5 40 6,500   0.99
  6213-Z 65 120 23 1.5 57.5 40 6,500   0.99
  6213-ZC3 65 120 23 1.5 57.5 40 6,500   0.99
  6213-ZNR 65 120 23 1.5 57.5 40 5,500 6,500 1.03
  6213-ZZ 65 120 23 1.5 57.5 40 5,500   0.99
  6213-ZZC3 65 120 23 1.5 57.5 40 5,500   0.99
  6213-ZZC3P6QE6 65 120 23 1.5 57.5 40 5,500   0.99
  6214-2RS 70 125 24 1.5 62 44 5,100   1.07
  6214-2RSC3 70 125 24 1.5 62 44 5,100   1.07
  6214-N 70 125 24 1.5 62 44 5,100 6,000 1.07
  6214-NR 70 125 24 1.5 62 44 5,100 6,000 1.11
  6214-RS 70 125 24 1.5 62 44 6,000   1.07
  6214-RSC3 70 125 24 1.5 62 44 6,000   1.07
  6214-Z 70 125 24 1.5 62 44 6,000   1.07
  6214-ZC3 70 125 24 1.5 62 44 6,000   1.07
  6214-ZNR 70 125 24 1.5 62 44 5,100 6,000 1.11
  6214-ZZ 70 125 24 1.5 62 44 5,100   1.07
  6214-ZZC3 70 125 24 1.5 62 44 5,100   1.07
  6214-ZZC3P6QE6 70 125 24 1.5 62 44 5,100   1.07
  6215-2RS 75 130 25 1.5 66 49.5 4,800   1.18
  6215-2RSC3 75 130 25 1.5 66 49.5 4,800   1.18
  6215-N 75 130 25 1.5 66 49.5 4,800 5,600 1.18
  6215-NR 75 130 25 1.5 66 49.5 4,800 5,600 1.22
  6215-RS 75 130 25 1.5 66 49.5 5,600   1.18
  6215-RSC3 75 130 25 1.5 66 49.5 5,600   1.18
  6215-Z 75 130 25 1.5 66 49.5 5,600   1.18
  6215-ZC3 75 130 25 1.5 66 49.5 5,600   1.18
  6215-ZNR 75 130 25 1.5 66 49.5 4,800 5,600 1.22
  6215-ZZ 75 130 25 1.5 66 49.5 4,800   1.18
  6215-ZZC3 75 130 25 1.5 66 49.5 4,800   1.18
  6215-ZZC3P6QE6 75 130 25 1.5 66 49.5 4,800   1.18
  6216-2RS 80 140 26 2 72.5 53 4,500   1.4
  6216-2RSC3 80 140 26 2 72.5 53 4,500   1.4
  6216-N 80 140 26 2 72.5 53 4,500 5,300 1.4
  6216-NR 80 140 26 2 72.5 53 4,500 5,300 1.45
  6216-RS 80 140 26 2 72.5 53 5,300   1.4
  6216-RSC3 80 140 26 2 72.5 53 5,300   1.4
  6216-Z 80 140 26 2 72.5 53 5,300   1.4
  6216-ZC3 80 140 26 2 72.5 53 5,300   1.4
  6216-ZNR 80 140 26 2 72.5 53 4,500 5,300 1.45
  6216-ZZ 80 140 26 2 72.5 53 4,500   1.4
  6216-ZZC3 80 140 26 2 72.5 53 4,500   1.4
  6216-ZZC3P6QE6 80 140 26 2 72.5 53 4,500   1.4
  6217-2RS 85 150 28 2 83.5 64 4,200   1.79
  6217-2RSC3 85 150 28 2 83.5 64 4,200   1.79
  6217-N 85 150 28 2 83.5 64 4,200 5,000 1.79
  6217-NR 85 150 28 2 83.5 64 4,200 5,000 1.84
  6217-RS 85 150 28 2 83.5 64 5,000   1.79
  6217-RSC3 85 150 28 2 83.5 64 5,000   1.79
  6217-Z 85 150 28 2 83.5 64 5,000   1.79
  6217-ZC3 85 150 28 2 83.5 64 5,000   1.79
  6217-ZNR 85 150 28 2 83.5 64 4,200 5,000 1.84
  6217-ZZ 85 150 28 2 83.5 64 4,200   1.79
  6217-ZZC3 85 150 28 2 83.5 64 4,200   1.79
  6217-ZZC3P6QE6 85 150 28 2 83.5 64 4,200   1.79
  6218-2RS 90 160 30 2 96 71.5 4,000   2.15
  6218-2RSC3 90 160 30 2 96 71.5 4,000   2.15
  6218-N 90 160 30 2 96 71.5 4,000 4,700 2.15
  6218-NR 90 160 30 2 96 71.5 4,000 4,700 2.2
  6218-RS 90 160 30 2 96 71.5 4,700   2.15
  6218-RSC3 90 160 30 2 96 71.5 4,700   2.15
  6218-Z 90 160 30 2 96 71.5 4,700   2.15
  6218-ZC3 90 160 30 2 96 71.5 4,700   2.15
  6218-ZNR 90 160 30 2 96 71.5 4,000 4,700 2.2
  6218-ZZ 90 160 30 2 96 71.5 4,000   2.15
  6218-ZZC3 90 160 30 2 96 71.5 4,000   2.15
  6218-ZZC3P6QE6 90 160 30 2 96 71.5 4,000   2.15
  6219-2RS 95 170 32 2.1 109 82 3,700   2.62
  6219-2RSC3 95 170 32 2.1 109 82 3,700   2.62
  6219-N 95 170 32 2.1 109 82 3,700 4,400 2.62
  6219-NR 95 170 32 2.1 109 82 3,700 4,400 2.7
  6219-RS 95 170 32 2.1 109 82 4,400   2.62
  6219-RSC3 95 170 32 2.1 109 82 4,400   2.62
  6219-Z 95 170 32 2.1 109 82 4,400   2.62
  6219-ZC3 95 170 32 2.1 109 82 4,400   2.62
  6219-ZNR 95 170 32 2.1 109 82 3,700 4,400 2.7
  6219-ZZ 95 170 32 2.1 109 82 3,700   2.62
  6219-ZZC3 95 170 32 2.1 109 82 3,700   2.62
  6219-ZZC3P6QE6 95 170 32 2.1 109 82 3,700   2.62
  6220-2RS 100 180 34 2.1 122 93 3,500   3.14
  6220-2RSC3 100 180 34 2.1 122 93 3,500   3.14
  6220-N 100 180 34 2.1 122 93 3,500 4,200 3.14
  6220-NR 100 180 34 2.1 122 93 3,500 4,200 3.23
  6220-RS 100 180 34 2.1 122 93 4,200   3.14
  6220-RSC3 100 180 34 2.1 122 93 4,200   3.14
  6220-Z 100 180 34 2.1 122 93 4,200   3.14
  6220-ZC3 100 180 34 2.1 122 93 4,200   3.14
  6220-ZNR 100 180 34 2.1 122 93 3,500 4,200 3.23
  6220-ZZ 100 180 34 2.1 122 93 3,500   3.14
  6220-ZZC3 100 180 34 2.1 122 93 3,500   3.14
  6220-ZZC3P6QE6 100 180 34 2.1 122 93 3,500   3.14
  6221-2RS 105 190 36 2.1 133 105 3,400   3.7
  6221-2RSC3 105 190 36 2.1 133 105 3,400   3.7
  6221-N 105 190 36 2.1 133 105 3,400 4,000 3.7
  6221-NR 105 190 36 2.1 133 105 3,400 4,000 3.79
  6221-RS 105 190 36 2.1 133 105 4,000   3.7
  6221-RSC3 105 190 36 2.1 133 105 4,000   3.7
  6221-Z 105 190 36 2.1 133 105 4,000   3.7
  6221-ZC3 105 190 36 2.1 133 105 4,000   3.7
  6221-ZNR 105 190 36 2.1 133 105 3,400 4,000 3.79
  6221-ZZ 105 190 36 2.1 133 105 3,400   3.7
  6221-ZZC3 105 190 36 2.1 133 105 3,400   3.7
  6221-ZZC3P6QE6 105 190 36 2.1 133 105 3,400   3.7
  6222-2RS 110 200 38 2.1 144 117 3,200   4.36
  6222-2RSC3 110 200 38 2.1 144 117 3,200   4.36
  6222-N 110 200 38 2.1 144 117 3,200 3,800 4.36
  6222-NR 110 200 38 2.1 144 117 3,200 3,800 4.46
  6222-RS 110 200 38 2.1 144 117 3,800   4.36
  6222-RSC3 110 200 38 2.1 144 117 3,800   4.36
  6222-Z 110 200 38 2.1 144 117 3,800   4.36
  6222-ZC3 110 200 38 2.1 144 117 3,800   4.36
  6222-ZNR 110 200 38 2.1 144 117 3,200 3,800 4.46
  6222-ZZ 110 200 38 2.1 144 117 3,200   4.36
  6222-ZZC3 110 200 38 2.1 144 117 3,200   4.36
  6222-ZZC3P6QE6 110 200 38 2.1 144 117 3,200   4.36
  6224-2RS 120 215 40 2.1 155 131 2,900   5.15
  6224-2RSC3 120 215 40 2.1 155 131 2,900   5.15
  6224-RS 120 215 40 2.1 155 131 3,400   5.15
  6224-RSC3 120 215 40 2.1 155 131 3,400   5.15
  6224-Z 120 215 40 2.1 155 131 3,400   5.15
  6224-ZC3 120 215 40 2.1 155 131 3,400   5.15
  6224-ZZ 120 215 40 2.1 155 131 2,900   5.15
  6224-ZZC3 120 215 40 2.1 155 131 2,900   5.15
  6224-ZZC3P6QE6 120 215 40 2.1 155 131 2,900   5.15

6201zz One Side Inner Ring Is Raised Bearing

Packing of Deep Groove Ball Bearing
6201zz One Side Inner Ring Is Raised Bearing

Certificates of TFNbearing
6201zz One Side Inner Ring Is Raised Bearing

Advantages of TFNbearing
6201zz One Side Inner Ring Is Raised Bearing



FAQ of Deep Groove Ball Bearing

1.Q:Are you a factory or trading company?

   A:TFN Bearing is specialized in manufacturing and exporting bearings.

      TFN Bearing have own factory and warehouse.

2.Q:Can I get some samples and do you offer the sample free?

   A:Yes, sure, TFN Bearing are honored to offer you samples.Can you buy a ticket ?

3.Q:What is the payment?

   A: 30% T/T In Advance, 70% T/T Against Copy Of B/L

   B: 100% L/C At Sight

4.Q:What is the MOQ for bearing?
   A: TFN Bearing MOQ is 1 pc.

5.Q:What kind of service you can offer?

   A:Technology support;Installation guidance;OEM.

6.Q:Which kinds of Deep Groove Ball Bearing you can supply?

   A:We can supply Open / 2RS / ZZ Type Deep Groove Ball Bearing,also can supply thin wall Deep Groove Ball Bearing and miniature Deep Groove Ball Bearing,according to your requirements



About the company

Truksino, an auto parts brand on its independent site, sources from 500+ suppliers. With advanced production, 10 global warehouses and 8 top logistics partners, it offers quality parts and ensures fast delivery.

Why Partner with Truksino? Eight Advantages for an Outstanding Collaboration

In the automotive parts industry, choosing the right partner is of utmost importance. Truksino, with its exceptional advantages, is the ideal choice for you, helping you stand out in the industry.

Exceptional Product Quality

We manufacture automotive parts using top - notch materials and advanced techniques. Stringent quality inspections throughout the production process ensure that each part is of exceptional reliability, providing peace of mind for your customers.

Vast Product Range

Truksino offers a comprehensive selection of automotive parts, covering everything from crucial engine components to delicate exterior trims. It can meet all your vehicle - related needs in one stop, regardless of the vehicle model.

Competitive Pricing

Understanding the key role of cost - effectiveness, we have developed a highly competitive pricing strategy. This enables you to obtain high - quality parts at affordable prices, enhancing your market competitiveness and expanding your profit margins.

Customization Options

Respecting the unique needs of each customer, we provide customization services. We can tailor - make exclusive parts according to your specific vehicle specifications, helping your products stand out in the market.

Rapid Delivery

With a delivery rate as high as 99.99%, we ensure that orders are delivered promptly. Our efficient supply chain, ample inventory, and optimized logistics significantly reduce your waiting time and ensure the efficient operation of your business.

Technical Support

Our experienced technical team is on standby at all times. Whether it's providing guidance on part installation or solving malfunctions, we can offer comprehensive professional support to troubleshoot problems for your business.

Easy - to - use Website

Our user - friendly website features a simple interface, smooth browsing, convenient search, and a straightforward ordering process. Wherever you are, you can easily enjoy a hassle - free purchasing experience.

Long - term Partnership

We are committed to building long - term and stable cooperative relationships. With consistent quality, service, and value, we aim to become your reliable partner and grow together in the market.

Unveiling the Secrets of Truksino's 99.99% Delivery Rate

500+

Truksino partners 500+ suppliers for raw materials.

100%

Advanced software helps Truksino reach 99.5% on-time rate.

100000+

10 global warehouses stock 100,000+ common auto parts.

8+

Collaborates with 8 top logistics, 98% on-time delivery.

Trusted By 3,500+ Creatives & Businesses

OxyNinja makes you & your clients happy.
  • "Collaborating with Truksino is excellent! Their product range is extensive and of top - notch quality. The customization service meets diverse needs. Fast delivery, almost no delays, greatly enhances our competitiveness. Professional technical support makes cooperation smooth. They're a reliable partner."
    AutoParts Pro
    Sr. Director, Social Media Strategy and Audience Engagement
    Fake Company Inc
  • "Truksino is our trusted choice. Their competitive pricing saves costs. Professional technical support resolves issues quickly. The user - friendly website enables efficient procurement. Working with them makes our business run smoothly."
    Global Auto Supplies
    Sr. Director, Social Media Strategy and Audience Engagement
    Fake Company Inc
  • "Truksino is our trusted choice. Their competitive pricing saves costs. Professional technical support resolves issues quickly. The user - friendly website enables efficient procurement. Working with them makes our business run smoothly."
    Eco - Drive Auto Parts
    Sr. Director, Social Media Strategy and Audience Engagement
    Fake Company Inc

Frequently Asked Questions about Truksino Auto Parts Purchasing

During the process of cooperating with Truksino to purchase auto parts, you may encounter various problems. This section aims to answer some common questions, helping you carry out your purchasing business more smoothly and understand our products and services in - depth.

How do you ensure the quality of your auto parts?

We adopt a strict quality control system. Each link, from raw material procurement, manufacturing to finished product delivery, goes through multiple inspection processes. All parts are made of high - quality materials and produced in accordance with international and industry standards. Some products have also passed relevant authoritative certifications to ensure reliable quality.

How long does your delivery usually take?

By optimizing supply chain management, we establish long - term cooperative relationships with many high - quality suppliers to achieve large - scale procurement, thus reducing costs. At the same time, we streamline internal operation processes and reduce unnecessary expenses, and pass on these cost advantages to customers, providing you with auto parts with extremely high cost - effectiveness.

Is there a guarantee?

We promise a delivery rate of up to 99.99%. Most regular orders will be shipped within [2] working days after payment confirmation. The specific delivery time will vary depending on product types, inventory status, and shipping distance. We cooperate with many well - known logistics companies and will choose the most suitable logistics method according to your needs to ensure the safe and timely delivery of goods.

What is your after - sales service policy?

If the parts you receive have quality problems, we provide unconditional return and exchange services under the premise of complying with the return and exchange policy. For non - human - caused damage problems that occur during use, we will also provide solutions such as repair, replacement, or compensation according to the actual situation to ensure that your rights and interests are protected.

Do you provide rare parts for specific vehicle models?

Yes, Truksino has a wide variety of products and an extensive supplier network. Even for rare parts of specific vehicle models, we have the ability to provide them for you through customization services or global procurement channels. You just need to provide detailed vehicle model and part information, and we will do our best to meet your needs.

Can you provide technical support if we encounter problems during the installation or use of the parts?

Of course, we have an experienced technical support team ready to assist you at any time. Whether it's installation guidance, troubleshooting, or technical consultation, you can contact us via phone, email, or online customer service. We will respond as soon as possible and provide detailed solutions.

Can you provide technical support if we encounter problems during the installation or use of the parts?

Of course, we have an experienced technical support team ready to assist you at any time. Whether it's installation guidance, troubleshooting, or technical consultation, you can contact us via phone, email, or online customer service. We will respond as soon as possible and provide detailed solutions.

Is it safe to purchase on your website? How do you ensure the security of transaction information?

We attach great importance to the security of website purchases. We use advanced encryption technology to ensure that all transaction information you submit on the website, such as personal information and payment information, is strictly protected. At the same time, our website follows relevant security standards and specifications and undergoes regular security inspections and maintenance to provide you with a safe and reliable purchasing environment.
1236 Melville Road, Los Angeles, CA 67890
(86) 17717714145
(86) 17717714145

Request A Free Quote

Questions, comments? You tell us. We listen.
Free samples are available for you.
Contact Form Demo
databaserocketthumbs-up
