Specialized inSnl 519-616 + C 2316 K + H 2316 Bearingand related product development and production

Samples: Available / Stock: Sufficient
Estimated delivery time: 3-5 days

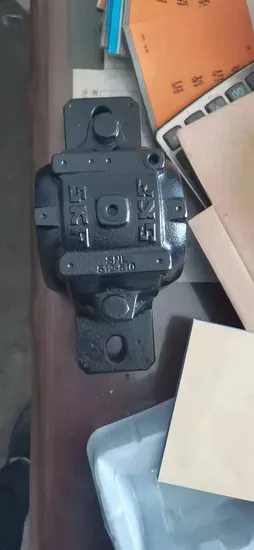

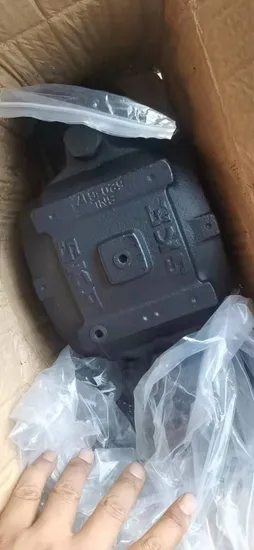

Snl 519-616 + C 2316 K + H 2316 Bearing
Snl 519-616 + C 2316 K + H 2316 Bearing - 图片 2
Snl 519-616 + C 2316 K + H 2316 Bearing - 图片 3
Snl 519-616 + C 2316 K + H 2316 Bearing - 图片 4

Product Parameters

Customization: Available Aligning: Non-Aligning Bearing Separated: Unseparated

Basic Info.

Model NO.
SNL 519-616

Feature
High Speed, Long Life

Rows Number
Single

Raceway
Deep Groove Raceway

Material
Bearing Steel

Bearing Block Model
F

Product Name
Snl 519-616 + C 2316 K + H 2316 Bearing

Certificate
ISO9001:2000

Application
Agricultural Mahinery

Clearance
C0,C2,C3, or as Requested

Service
OEM Customized Services

Model
Snl 519-616

Precision Rating
P0 P2 P3 P4 P5 P6

Cage Material
Steel, Nylon, Brass

Advantage
Long Use Life

Type
Pillow Block

Transport Package
Single Box Packaging/OEM

Specification
bearing steel

Trademark
TFN/OEM

Origin
China

HS Code
8482102000

Production Capacity
10000/Month

Product Description

SNL 519-616 + C 2316 K + H 2316 bearing

Snl 519-616 + C 2316 K + H 2316 BearingSnl 519-616 + C 2316 K + H 2316 BearingSnl 519-616 + C 2316 K + H 2316 BearingSnl 519-616 + C 2316 K + H 2316 BearingSnl 519-616 + C 2316 K + H 2316 Bearing

 Pillow Block Bearing

production name SNL 519-616 + C 2316 K + H 2316 bearing
brand TFN/OEM
Model Number SNL519-616
Ring Material Gcr15/ Carbon Steel/ Stainless Steel
Cage Material  Steel/ Brass/ Nylon/ Custom
Precision P0, P6, P5, or as requested
Vibration ZV1, ZV2, ZV3, or as requested
Clearance  C0,C2,C3, or as requested
Quality standard ISO9001:2000/ SGS
Quality Control Process  1.Assembly
2.Windage test2.Windage test
3.Cleaning
4.Rotary test
5.Greasing and gland
6.Noise inspection
7.Appearance inspection
8.Rust prevention
9.Product packaging
Application  low noise machine,automobile,motorcycle,and the general machinery and etc.

More model of Pillow Block Bearing

DIMENSIONS

da
70 mm
Shaft diameter
Ca
68 mm
Width of bearing seat
Da
170 mm
Diameter of bearing seat
Db
131 mm
Bore diameter
A
145 mm
Width
A1
100 mm
Foot width
H
212 mm
Height
H1
112 mm
Centre height of bearing seat
H2
35 mm
Foot height
J
290 mm
Distance between attachment bolts
L
345 mm
Length
N
28 mm
Length of attachment bolt hole
N1
22 mm
Width of attachment bolt hole
DOWEL PINS
J6
317 mm
Distance between dowel pins
J7
35 mm
Axial offset of dowel pins
N4
max.8 mm
Diameter of dowel pins
SEAL DIMENSIONS
A2L
163 mm
Width across labyrinth seals
A2T
220 mm
Width across taconite seals
d2
166 mm
Diameter of taconite seal

BREAKING LOADS, HOUSING

P0°
450 kN
Breaking load
P55°
580 kN
Breaking load
P90°
350 kN
Breaking load
P120°
260 kN
Breaking load
P150°
230 kN
Breaking load
P180°
290 kN
Breaking load
Pa
190 kN
Breaking load



YIELD POINT, CAP BOLTS

Q120°
400 kN
Load carrying ability of cap bolts
Q150°
230 kN
Load carrying ability of cap bolts
Q180°
200 kN
Load carrying ability of cap bolts

MASS

Mass housing
13.7 kg

MOUNTING INFORMATION

Size of cap bolt
M 16x90
Recommended tightening torque for cap bolts
150 N·m
Recommended diameter for attachment bolts G
20 mm
Recommended tightening torque for attachment bolts
385 N·m
Initial grease fill, 20%
300 g
Initial grease fill, 40%
480 g

Snl 519-616 + C 2316 K + H 2316 Bearing

Snl 519-616 + C 2316 K + H 2316 Bearing

deep groove ball bearing packaging
Snl 519-616 + C 2316 K + H 2316 Bearing

FAQ of deep groove ball bearing

1.Q:Are you a factory or trading company?
 A:SEMRI Bearing is specialized in manufacturing and exporting bearings.
 SEMRI Bearing have own factory and warehouse.
2.Q:Can I get some samples and do you offer the sample free?
 A:Yes, sure, SEMRI Bearing are honored to offer you samples.Can you buy a ticket ?3.Q:What is the payment?
  A: 30% T/T In Advance, 70% T/T Against Copy Of B/L
 B: 100% L/C At Sight
4.Q:What is the MOQ for bearing?
   A: SEMRI Bearing MOQ is 1 pc.
5.Q:What kind of service you can offer?
 A:Technology support;Installation guidance;OE
