Specialized inOuter Insulation Bearing 6316m/C3 Vl0241and related product development and production

Samples: Available / Stock: Sufficient
Estimated delivery time: 3-5 days

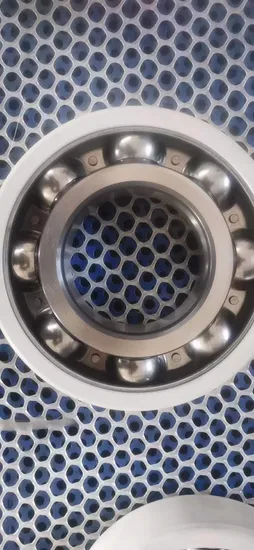

Outer Insulation Bearing 6316m/C3 Vl0241
Outer Insulation Bearing 6316m/C3 Vl0241 - 图片 2
Outer Insulation Bearing 6316m/C3 Vl0241 - 图片 3
Outer Insulation Bearing 6316m/C3 Vl0241 - 图片 4

Product Parameters

Customization: Available Contact Angle: 0 Aligning: Non-Aligning Bearing

Basic Info.

Model NO.
6316M/C3 VL0241

Separated
Unseparated

Rows Number
Single

Load Direction
Radial Bearing

Material
Bearing Steel

Product Name
Outer Insulation Bearing 6316m/C3 Vl0241

Size
80*170*39mm

Weight
3.61

Vibration
Zv1, Zv2, Zv3, or as Requested

Transport Package
Single Box Packaging/OEM

Specification
17x40x12mm

Trademark
TFN/OEM

Origin
China

HS Code
8482102000

Production Capacity
10000/Month

Packaging & Delivery

Package Size
100.00cm * 200.00cm * 50.00cm

Package Gross Weight
5.000kg

Product Description

Outer insulation Bearing 6316M/C3 VL0241

Outer Insulation Bearing 6316m/C3 Vl0241

Outer insulation Bearing 6316M/C3 VL0241

DIMENSIONS

d
80 mm
Bore diameter
D
170 mm
Outside diameter
B
39 mm
Width
d1
≈108 mm
Shoulder diameter inner ring
D2
≈149 mm
Recess diameter outer ring shoulder
r1,2
min.2.1 mm
Chamfer dimension



ABUTMENT DIMENSIONS

da
min.92 mm
Abutment diameter shaft
Da
min.154 mm
Abutment diameter shaft
Da
max.158 mm
Abutment diameter housing
ra
max.2 mm
Fillet radius

CALCULATION DATA

Basic dynamic load rating C
130 kN
Basic static load rating C0
86.5 kN
Fatigue load limit Pu
3.25 kN
Reference speed
8 500 r/min
Limiting speed
5 300 r/min
Calculation factor kr
0.03
Calculation factor f0
13.3

MASS

Mass bearing
3.55 kg


More model of deep groove ball bearing
  Bearing Number Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg)
    d D B rs min Cr Cor Grease Oil (Approx.)
60 Series 6000 10 26 8 0.3 4.55 1.96 29,000 34,000 0.019
  6001 12 28 8 0.3 5.1 2.39 26,000 30,000 0.021
  6002 15 32 9 0.3 5.6 2.83 22,000 26,000 0.03
  6003 17 35 10 0.3 6.8 3.35 20,000 24,000 0.039
  6004 20 42 12 0.6 9.4 5.05 18,000 21,000 0.069
  6005 25 47 12 0.6 10.1 5.85 15,000 18,000 0.08
  6006 30 55 13 1 13.2 8.3 13,000 15,000 0.116
  6007 35 62 14 1 16 10.3 12,000 14,000 0.155
  6008 40 68 15 1 16.8 11.5 10,000 12,000 0.19
  6009 45 75 16 1 21 15.1 9,200 11,000 0.237
  6010 50 80 16 1 21.8 16.6 8,400 9,800 0.261
  6011 55 90 18 1.1 28.3 21.2 7,700 9,000 0.388
  6012 60 95 18 1.1 29.5 23.2 7,000 8,300 0.414
  6013 65 100 18 1.1 30.5 25.2 6,500 7,700 0.421
  6014 70 110 20 1.1 38 31 6,100 7,100 0.604
  6015 75 115 20 1.1 39.5 33.5 5,700 6,700 0.649
  6016 80 125 22 1.1 47.5 40 5,300 6,200 0.854
  6017 85 130 22 1.1 49.5 43 5,000 5,900 0.89
  6018 90 140 24 1.5 58 49.5 4,700 5,600 1.02
  6019 95 145 24 1.5 60.5 54 4,500 5,300 1.08
  6020 100 150 24 1.5 60 54 4,200 5,000 1.15
  6021 105 160 26 2 72.5 65.5 4,000 4,700 1.59
  6022 110 170 28 2 82 73 3,800 4,500 1.96
  6024 120 180 28 2 85 79.5 3,500 4,100 2.07
  6026 130 200 33 2 106 101 3,200 3,800 3.16
  6028 140 210 33 2 110 109 3,000 3,500 3.35
  6030 150 225 35 2.1 126 126 2,800 3,200 4.08
  6032 160 240 38 2.1 143 144 2,600 3,000 5.05
  6034 170 260 42 2.1 168 172 2,400 2,800 6.76
  6036 180 280 46 2.1 189 199 2,300 2,700 8.8
  6038 190 290 46 2.1 197 215 2,100 2,500 9.18
  6040 200 310 51 2.1 218 243 2,000 2,400 11.9
  60/22 22 44 12 0.6 955 515 17,000 20,000 0.074
  60/28 28 52 12 0.6 1270 755 14,000 16,000 0.098
  60/32 32 58 13 1 1200 820 12,000 15,000 0.129
60...C3 Series 6000C3 10 26 8 0.3 4.55 1.96 29,000 34,000 0.019
  6001C3 12 28 8 0.3 5.1 2.39 26,000 30,000 0.021
  6002C3 15 32 9 0.3 5.6 2.83 22,000 26,000 0.03
  6003C3 17 35 10 0.3 6.8 3.35 20,000 24,000 0.039
  6004C3 20 42 12 0.6 9.4 5.05 18,000 21,000 0.069
  6005C3 25 47 12 0.6 10.1 5.85 15,000 18,000 0.08
  6006C3 30 55 13 1 13.2 8.3 13,000 15,000 0.116
  6007C3 35 62 14 1 16 10.3 12,000 14,000 0.155
  6008C3 40 68 15 1 16.8 11.5 10,000 12,000 0.19
  6009C3 45 75 16 1 21 15.1 9,200 11,000 0.237
  6010C3 50 80 16 1 21.8 16.6 8,400 9,800 0.261
  6011C3 55 90 18 1.1 28.3 21.2 7,700 9,000 0.388
  6012C3 60 95 18 1.1 29.5 23.2 7,000 8,300 0.414
  6013C3 65 100 18 1.1 30.5 25.2 6,500 7,700 0.421
  6014C3 70 110 20 1.1 38 31 6,100 7,100 0.604
  6015C3 75 115 20 1.1 39.5 33.5 5,700 6,700 0.649
  6016C3 80 125 22 1.1 47.5 40 5,300 6,200 0.854
  6017C3 85 130 22 1.1 49.5 43 5,000 5,900 0.89
  6018C3 90 140 24 1.5 58 49.5 4,700 5,600 1.02
  6019C3 95 145 24 1.5 60.5 54 4,500 5,300 1.08
  6020C3 100 150 24 1.5 60 54 4,200 5,000 1.15
  6021C3 105 160 26 2 72.5 65.5 4,000 4,700 1.59
  6022C3 110 170 28 2 82 73 3,800 4,500 1.96
  6024C3 120 180 28 2 85 79.5 3,500 4,100 2.07
  6026C3 130 200 33 2 106 101 3,200 3,800 3.16
  6028C3 140 210 33 2 110 109 3,000 3,500 3.35
  6030C3 150 225 35 2.1 126 126 2,800 3,200 4.08
  6032C3 160 240 38 2.1 143 144 2,600 3,000 5.05
  6034C3 170 260 42 2.1 168 172 2,400 2,800 6.76
  6036C3 180 280 46 2.1 189 199 2,300 2,700 8.8
  6038C3 190 290 46 2.1 197 215 2,100 2,500 9.18
  6040C3 200 310 51 2.1 218 243 2,000 2,400 11.9
60... Series 60/22-2RDC3P6QE6 22 44 12 0.6 955 515 13,000   0.074
  60/22-2RS 22 44 12 0.6 955 515 13,000   0.074
  60/22-2RSC3 22 44 12 0.6 955 515 13,000   0.074
  60/22-ZZ 22 44 12 0.6 955 515 13,000   0.074
  60/22-ZZC3 22 44 12 0.6 955 515 13,000   0.074
  60/28-2RDC3P6QE6 28 52 12 0.6 1270 755 10,000   0.098
  60/28-2RS 28 52 12 0.6 1270 755 10,000   0.098
  60/28-2RSC3 28 52 12 0.6 1270 755 10,000   0.098
  60/28-ZZ 28 52 12 0.6 1270 755 10,000   0.098
  60/28-ZZC3 28 52 12 0.6 1270 755 10,000   0.098
  60/32-2RDC3P6QE6 32 58 13 1 1200 820 8,700   0.129
  60/32-2RS 32 58 13 1 1200 820 8,700   0.129
  60/32-2RSC3 32 58 13 1 1200 820 8,700   0.129
  60/32-ZZ 32 58 13 1 1200 820 8,700   0.129
  60/32-ZZC3 32 58 13 1 1200 820 8,700   0.129
  6000-2RDC3P6QE6 10 26 8 0.3 4.55 1.96 25,000   0.019
  6000-2RS 10 26 8 0.3 4.55 1.96 29,000   0.019
  6000-2RSC3 10 26 8 0.3 4.55 1.96 29,000   0.019
  6000-RS 10 26 8 0.3 4.55 1.96 34,000   0.019
  6000-RSC3 10 26 8 0.3 4.55 1.96 34,000   0.019
  6000-Z 10 26 8 0.3 4.55 1.96 34,000   0.019
  6000-ZC3 10 26 8 0.3 4.55 1.96 34,000   0.019
  6000-ZZ 10 26 8 0.3 4.55 1.96 29,000   0.019
  6000-ZZC3 10 26 8 0.3 4.55 1.96 29,000   0.019
  6000-ZZC3P6QE6 10 26 8 0.3 4.55 1.96 29,000   0.019
  6001-2RDC3P6QE6 12 28 8 0.3 5.1 2.39 21,000   0.021
  6001-2RS 12 28 8 0.3 5.1 2.39 26,000   0.021
  6001-2RSC3 12 28 8 0.3 5.1 2.39 26,000   0.021
  6001-RS 12 28 8 0.3 5.1 2.39 30,000   0.021
  6001-RSC3 12 28 8 0.3 5.1 2.39 30,000   0.021
  6001-Z 12 28 8 0.3 5.1 2.39 30,000   0.021
  6001-ZC3 12 28 8 0.3 5.1 2.39 30,000   0.021
  6001-ZZ 12 28 8 0.3 5.1 2.39 26,000   0.021
  6001-ZZC3 12 28 8 0.3 5.1 2.39 26,000   0.021
  6001-ZZC3P6QE6 12 28 8 0.3 5.1 2.39 26,000   0.021
  6002-2RDC3P6QE6 15 32 9 0.3 5.6 2.83 18,000   0.03
  6002-2RS 15 32 9 0.3 5.6 2.83 22,000   0.03
  6002-2RSC3 15 32 9 0.3 5.6 2.83 22,000   0.03
  6002-N 15 32 9 0.3 5.6 2.83 22,000 26,000 0.03
  6002-NR 15 32 9 0.3 5.6 2.83 22,000 26,000 0.032
  6002-RS 15 32 9 0.3 5.6 2.83 26,000   0.03
  6002-RSC3 15 32 9 0.3 5.6 2.83 26,000   0.03
  6002-Z 15 32 9 0.3 5.6 2.83 26,000   0.03
  6002-ZC3 15 32 9 0.3 5.6 2.83 26,000   0.03
  6002-ZNR 15 32 9 0.3 5.6 2.83 22,000 26,000 0.032
  6002-ZZ 15 32 9 0.3 5.6 2.83 22,000   0.03
  6002-ZZC3 15 32 9 0.3 5.6 2.83 22,000   0.03
  6002-ZZC3P6QE6 15 32 9 0.3 5.6 2.83 22,000   0.03
  6003-2RDC3P6QE6 17 35 10 0.3 6.8 3.35 16,000   0.039
  6003-2RS 17 35 10 0.3 6.8 3.35 20,000   0.039
  6003-2RSC3 17 35 10 0.3 6.8 3.35 20,000   0.039
  6003-N 17 35 10 0.3 6.8 3.35 20,000 24,000 0.039
  6003-NR 17 35 10 0.3 6.8 3.35 20,000 24,000 0.041
  6003-RS 17 35 10 0.3 6.8 3.35 24,000   0.039
  6003-RSC3 17 35 10 0.3 6.8 3.35 24,000   0.039
  6003-Z 17 35 10 0.3 6.8 3.35 24,000   0.039
  6003-ZC3 17 35 10 0.3 6.8 3.35 24,000   0.039
  6003-ZNR 17 35 10 0.3 6.8 3.35 20,000 24,000 0.041
  6003-ZZ 17 35 10 0.3 6.8 3.35 20,000   0.039
  6003-ZZC3 17 35 10 0.3 6.8 3.35 20,000   0.039
  6003-ZZC3P6QE6 17 35 10 0.3 6.8 3.35 20,000   0.039
  6004-2RDC3P6QE6 20 42 12 0.6 9.4 5.05 13,000   0.069
  6004-2RS 20 42 12 0.6 9.4 5.05 18,000   0.069
  6004-2RSC3 20 42 12 0.6 9.4 5.05 18,000   0.069
  6004-N 20 42 12 0.6 9.4 5.05 18,000 21,000 0.069
  6004-NR 20 42 12 0.6 9.4 5.05 18,000 21,000 0.071
  6004-RS 20 42 12 0.6 9.4 5.05 21,000   0.069
  6004-RSC3 20 42 12 0.6 9.4 5.05 21,000   0.069
  6004-Z 20 42 12 0.6 9.4 5.05 21,000   0.069
  6004-ZC3 20 42 12 0.6 9.4 5.05 21,000   0.069
  6004-ZNR 20 42 12 0.6 9.4 5.05 18,000 21,000 0.071
  6004-ZZ 20 42 12 0.6 9.4 5.05 18,000   0.069
  6004-ZZC3 20 42 12 0.6 9.4 5.05 18,000   0.069
  6004-ZZC3P6QE6 20 42 12 0.6 9.4 5.05 18,000   0.069
  6005-2RDC3P6QE6 25 47 12 0.6 10.1 5.85 11,000   0.08
  6005-2RS 25 47 12 0.6 10.1 5.85 15,000   0.08
  6005-2RSC3 25 47 12 0.6 10.1 5.85 15,000   0.08
  6005-N 25 47 12 0.6 10.1 5.85 15,000 18,000 0.08
  6005-NR 25 47 12 0.6 10.1 5.85 15,000 18,000 0.084
  6005-RS 25 47 12 0.6 10.1 5.85 18,000   0.08
  6005-RSC3 25 47 12 0.6 10.1 5.85 18,000   0.08
  6005-Z 25 47 12 0.6 10.1 5.85 18,000   0.08
  6005-ZC3 25 47 12 0.6 10.1 5.85 18,000   0.08
  6005-ZNR 25 47 12 0.6 10.1 5.85 15,000 18,000 0.084
  6005-ZZ 25 47 12 0.6 10.1 5.85 15,000   0.08
  6005-ZZC3 25 47 12 0.6 10.1 5.85 15,000   0.08
  6005-ZZC3P6QE6 25 47 12 0.6 10.1 5.85 15,000   0.08
  6006-2RDC3P6QE6 30 55 13 1 13.2 8.3 9,200   0.116
  6006-2RS 30 55 13 1 13.2 8.3 13,000   0.116
  6006-2RSC3 30 55 13 1 13.2 8.3 13,000   0.116
  6006-N 30 55 13 1 13.2 8.3 13,000 15,000 0.116
  6006-NR 30 55 13 1 13.2 8.3 13,000 15,000 0.12
  6006-RS 30 55 13 1 13.2 8.3 15,000   0.116
  6006-RSC3 30 55 13 1 13.2 8.3 15,000   0.116
  6006-Z 30 55 13 1 13.2 8.3 15,000   0.116
  6006-ZC3 30 55 13 1 13.2 8.3 15,000   0.116
  6006-ZNR 30 55 13 1 13.2 8.3 13,000 15,000 0.12
  6006-ZZ 30 55 13 1 13.2 8.3 13,000   0.116
  6006-ZZC3 30 55 13 1 13.2 8.3 13,000   0.116
  6006-ZZC3P6QE6 30 55 13 1 13.2 8.3 13,000   0.116
  6007-2RDC3P6QE6 35 62 14 1 16 10.3 8,200   0.155
  6007-2RS 35 62 14 1 16 10.3 12,000   0.155
  6007-2RSC3 35 62 14 1 16 10.3 12,000   0.155
  6007-N 35 62 14 1 16 10.3 12,000 14,000 0.155
  6007-NR 35 62 14 1 16 10.3 12,000 14,000 0.162
  6007-RS 35 62 14 1 16 10.3 14,000   0.155
  6007-RSC3 35 62 14 1 16 10.3 14,000   0.155
  6007-Z 35 62 14 1 16 10.3 14,000   0.155
  6007-ZC3 35 62 14 1 16 10.3 14,000   0.155
  6007-ZNR 35 62 14 1 16 10.3 12,000 14,000 0.162
  6007-ZZ 35 62 14 1 16 10.3 12,000   0.155
  6007-ZZC3 35 62 14 1 16 10.3 12,000   0.155
  6007-ZZC3P6QE6 35 62 14 1 16 10.3 12,000   0.155
  6008-2RDC3P6QE6 40 68 15 1 16.8 11.5 7,300   0.19
  6008-2RS 40 68 15 1 16.8 11.5 10,000   0.19
  6008-2RSC3 40 68 15 1 16.8 11.5 10,000   0.19
  6008-N 40 68 15 1 16.8 11.5 10,000 12,000 0.19
  6008-NR 40 68 15 1 16.8 11.5 10,000 12,000 0.199
  6008-RS 40 68 15 1 16.8 11.5 12,000   0.19
  6008-RSC3 40 68 15 1 16.8 11.5 12,000   0.19
  6008-Z 40 68 15 1 16.8 11.5 12,000   0.19
  6008-ZC3 40 68 15 1 16.8 11.5 12,000   0.19
  6008-ZNR 40 68 15 1 16.8 11.5 10,000 12,000 0.199
  6008-ZZ 40 68 15 1 16.8 11.5 10,000   0.19
  6008-ZZC3 40 68 15 1 16.8 11.5 10,000   0.19
  6008-ZZC3P6QE6 40 68 15 1 16.8 11.5 10,000   0.19
  6009-2RDC3P6QE6 45 75 16 1 21 15.1 6,500   0.237
  6009-2RS 45 75 16 1 21 15.1 9,200   0.237
  6009-2RSC3 45 75 16 1 21 15.1 9,200   0.237
  6009-N 45 75 16 1 21 15.1 9,200 11,000 0.237
  6009-NR 45 75 16 1 21 15.1 9,200 11,000 0.247
  6009-RS 45 75 16 1 21 15.1 11,000   0.237
  6009-RSC3 45 75 16 1 21 15.1 11,000   0.237
  6009-Z 45 75 16 1 21 15.1 11,000   0.237
  6009-ZC3 45 75 16 1 21 15.1 11,000   0.237
  6009-ZNR 45 75 16 1 21 15.1 9,200 11,000 0.247
  6009-ZZ 45 75 16 1 21 15.1 9,200   0.237
  6009-ZZC3 45 75 16 1 21 15.1 9,200   0.237
  6009-ZZC3P6QE6 45 75 16 1 21 15.1 9,200   0.237
  6010-2RDC3P6QE6 50 80 16 1 21.8 16.6 6,000   0.261
  6010-2RS 50 80 16 1 21.8 16.6 8,400   0.261
  6010-2RSC3 50 80 16 1 21.8 16.6 8,400   0.261
  6010-N 50 80 16 1 21.8 16.6 8,400 9,800 0.261
  6010-NR 50 80 16 1 21.8 16.6 8,400 9,800 0.272
  6010-RS 50 80 16 1 21.8 16.6 9,800   0.261
  6010-RSC3 50 80 16 1 21.8 16.6 9,800   0.261
  6010-Z 50 80 16 1 21.8 16.6 9,800   0.261
  6010-ZC3 50 80 16 1 21.8 16.6 9,800   0.261
  6010-ZNR 50 80 16 1 21.8 16.6 8,400 9,800 0.272
  6010-ZZ 50 80 16 1 21.8 16.6 8,400   0.261
  6010-ZZC3 50 80 16 1 21.8 16.6 8,400   0.261
  6010-ZZC3P6QE6 50 80 16 1 21.8 16.6 8,400   0.261
  6011-2RS 55 90 18 1.1 28.3 21.2 7,700   0.388
  6011-2RSC3 55 90 18 1.1 28.3 21.2 7,700   0.388
  6011-N 55 90 18 1.1 28.3 21.2 7,700 9,000 0.388
  6011-NR 55 90 18 1.1 28.3 21.2 7,700 9,000 0.405
  6011-RS 55 90 18 1.1 28.3 21.2 9,000   0.388
  6011-RSC3 55 90 18 1.1 28.3 21.2 9,000   0.388
  6011-Z 55 90 18 1.1 28.3 21.2 9,000   0.388
  6011-ZC3 55 90 18 1.1 28.3 21.2 9,000   0.388
  6011-ZNR 55 90 18 1.1 28.3 21.2 7,700 9,000 0.405
  6011-ZZ 55 90 18 1.1 28.3 21.2 7,700   0.388
  6011-ZZC3 55 90 18 1.1 28.3 21.2 7,700   0.388
  6011-ZZC3P6QE6 55 90 18 1.1 28.3 21.2 7,700   0.388
  6012-2RS 60 95 18 1.1 29.5 23.2 7,000   0.414
  6012-2RSC3 60 95 18 1.1 29.5 23.2 7,000   0.414
  6012-N 60 95 18 1.1 29.5 23.2 7,000 8,300 0.414
  6012-NR 60 95 18 1.1 29.5 23.2 7,000 8,300 0.432
  6012-RS 60 95 18 1.1 29.5 23.2 8,300   0.414
  6012-RSC3 60 95 18 1.1 29.5 23.2 8,300   0.414
  6012-Z 60 95 18 1.1 29.5 23.2 8,300   0.414
  6012-ZC3 60 95 18 1.1 29.5 23.2 8,300   0.414
  6012-ZNR 60 95 18 1.1 29.5 23.2 7,000 8,300 0.432
  6012-ZZ 60 95 18 1.1 29.5 23.2 7,000   0.414
  6012-ZZC3 60 95 18 1.1 29.5 23.2 7,000   0.414
  6012-ZZC3P6QE6 60 95 18 1.1 29.5 23.2 7,000   0.414
  6013-2RS 65 100 18 1.1 30.5 25.2 6,500   0.421
  6013-2RSC3 65 100 18 1.1 30.5 25.2 6,500   0.421
  6013-N 65 100 18 1.1 30.5 25.2 6,500 7,700 0.421
  6013-NR 65 100 18 1.1 30.5 25.2 6,500 7,700 0.44
  6013-RS 65 100 18 1.1 30.5 25.2 7,700   0.421
  6013-RSC3 65 100 18 1.1 30.5 25.2 7,700   0.421
  6013-Z 65 100 18 1.1 30.5 25.2 7,700   0.421
  6013-ZC3 65 100 18 1.1 30.5 25.2 7,700   0.421
  6013-ZNR 65 100 18 1.1 30.5 25.2 6,500 7,700 0.44
  6013-ZZ 65 100 18 1.1 30.5 25.2 6,500   0.421
  6013-ZZC3 65 100 18 1.1 30.5 25.2 6,500   0.421
  6013-ZZC3P6QE6 65 100 18 1.1 30.5 25.2 6,500   0.421
  6014-2RS 70 110 20 1.1 38 31 6,100   0.604
  6014-2RSC3 70 110 20 1.1 38 31 6,100   0.604
  6014-N 70 110 20 1.1 38 31 6,100 7,100 0.604
  6014-NR 70 110 20 1.1 38 31 6,100 7,100 0.625
  6014-RS 70 110 20 1.1 38 31 7,100   0.604
  6014-RSC3 70 110 20 1.1 38 31 7,100   0.604
  6014-Z 70 110 20 1.1 38 31 7,100   0.604
  6014-ZC3 70 110 20 1.1 38 31 7,100   0.604
  6014-ZNR 70 110 20 1.1 38 31 6,100 7,100 0.625
  6014-ZZ 70 110 20 1.1 38 31 6,100   0.604
  6014-ZZC3 70 110 20 1.1 38 31 6,100   0.604
  6014-ZZC3P6QE6 70 110 20 1.1 38 31 6,100   0.604
  6015-2RS 75 115 20 1.1 39.5 33.5 5,700   0.649
  6015-2RSC3 75 115 20 1.1 39.5 33.5 5,700   0.649
  6015-N 75 115 20 1.1 39.5 33.5 5,700 6,700 0.649
  6015-NR 75 115 20 1.1 39.5 33.5 5,700 6,700 0.671
  6015-RS 75 115 20 1.1 39.5 33.5 6,700   0.649
  6015-RSC3 75 115 20 1.1 39.5 33.5 6,700   0.649
  6015-Z 75 115 20 1.1 39.5 33.5 6,700   0.649
  6015-ZC3 75 115 20 1.1 39.5 33.5 6,700   0.649
  6015-ZNR 75 115 20 1.1 39.5 33.5 5,700 6,700 0.671
  6015-ZZ 75 115 20 1.1 39.5 33.5 5,700   0.649
  6015-ZZC3 75 115 20 1.1 39.5 33.5 5,700   0.649
  6015-ZZC3P6QE6 75 115 20 1.1 39.5 33.5 5,700   0.649
  6016-2RS 80 125 22 1.1 47.5 40 5,300   0.854
  6016-2RSC3 80 125 22 1.1 47.5 40 5,300   0.854
  6016-N 80 125 22 1.1 47.5 40 5,300 6,200 0.854
  6016-NR 80 125 22 1.1 47.5 40 5,300 6,200 0.895
  6016-RS 80 125 22 1.1 47.5 40 6,200   0.854
  6016-RSC3 80 125 22 1.1 47.5 40 6,200   0.854
  6016-Z 80 125 22 1.1 47.5 40 6,200   0.854
  6016-ZC3 80 125 22 1.1 47.5 40 6,200   0.854
  6016-ZNR 80 125 22 1.1 47.5 40 5,300 6,200 0.895
  6016-ZZ 80 125 22 1.1 47.5 40 5,300   0.854
  6016-ZZC3 80 125 22 1.1 47.5 40 5,300   0.854
  6016-ZZC3P6QE6 80 125 22 1.1 47.5 40 5,300   0.854
  6017-2RS 85 130 22 1.1 49.5 43 5,000   0.89
  6017-2RSC3 85 130 22 1.1 49.5 43 5,000   0.89
  6017-N 85 130 22 1.1 49.5 43 5,000 5,900 0.89
  6017-NR 85 130 22 1.1 49.5 43 5,000 5,900 0.933
  6017-RS 85 130 22 1.1 49.5 43 5,900   0.89
  6017-RSC3 85 130 22 1.1 49.5 43 5,900   0.89
  6017-Z 85 130 22 1.1 49.5 43 5,900   0.89
  6017-ZC3 85 130 22 1.1 49.5 43 5,900   0.89
  6017-ZNR 85 130 22 1.1 49.5 43 5,000 5,900 0.933
  6017-ZZ 85 130 22 1.1 49.5 43 5,000   0.89

Outer Insulation Bearing 6316m/C3 Vl0241

Outer Insulation Bearing 6316m/C3 Vl0241

deep groove ball bearing packaging
Outer Insulation Bearing 6316m/C3 Vl0241

FAQ of deep groove ball bearing

1.Q:Are you a factory or trading company?
 A:SEMRI Bearing is specialized in manufacturing and exporting bearings.
 SEMRI Bearing have own factory and warehouse.
2.Q:Can I get some samples and do you offer the sample free?
 A:Yes, sure, SEMRI Bearing are honored to offer you samples.Can you buy a ticket ?3.Q:What is the payment?
  A: 30% T/T In Advance, 70% T/T Against Copy Of B/L
 B: 100% L/C At Sight
4.Q:What is the MOQ for bearing?
   A: SEMRI Bearing MOQ is 1 pc.
5.Q:What kind of service you can offer?
 A:Technology support;Installation guidance;OE

About the company

Truksino, an auto parts brand on its independent site, sources from 500+ suppliers. With advanced production, 10 global warehouses and 8 top logistics partners, it offers quality parts and ensures fast delivery.

Why Partner with Truksino? Eight Advantages for an Outstanding Collaboration

In the automotive parts industry, choosing the right partner is of utmost importance. Truksino, with its exceptional advantages, is the ideal choice for you, helping you stand out in the industry.

Exceptional Product Quality

We manufacture automotive parts using top - notch materials and advanced techniques. Stringent quality inspections throughout the production process ensure that each part is of exceptional reliability, providing peace of mind for your customers.

Vast Product Range

Truksino offers a comprehensive selection of automotive parts, covering everything from crucial engine components to delicate exterior trims. It can meet all your vehicle - related needs in one stop, regardless of the vehicle model.

Competitive Pricing

Understanding the key role of cost - effectiveness, we have developed a highly competitive pricing strategy. This enables you to obtain high - quality parts at affordable prices, enhancing your market competitiveness and expanding your profit margins.

Customization Options

Respecting the unique needs of each customer, we provide customization services. We can tailor - make exclusive parts according to your specific vehicle specifications, helping your products stand out in the market.

Rapid Delivery

With a delivery rate as high as 99.99%, we ensure that orders are delivered promptly. Our efficient supply chain, ample inventory, and optimized logistics significantly reduce your waiting time and ensure the efficient operation of your business.

Technical Support

Our experienced technical team is on standby at all times. Whether it's providing guidance on part installation or solving malfunctions, we can offer comprehensive professional support to troubleshoot problems for your business.

Easy - to - use Website

Our user - friendly website features a simple interface, smooth browsing, convenient search, and a straightforward ordering process. Wherever you are, you can easily enjoy a hassle - free purchasing experience.

Long - term Partnership

We are committed to building long - term and stable cooperative relationships. With consistent quality, service, and value, we aim to become your reliable partner and grow together in the market.

Unveiling the Secrets of Truksino's 99.99% Delivery Rate

500+

Truksino partners 500+ suppliers for raw materials.

100%

Advanced software helps Truksino reach 99.5% on-time rate.

100000+

10 global warehouses stock 100,000+ common auto parts.

8+

Collaborates with 8 top logistics, 98% on-time delivery.

Trusted By 3,500+ Creatives & Businesses

OxyNinja makes you & your clients happy.
  • "Collaborating with Truksino is excellent! Their product range is extensive and of top - notch quality. The customization service meets diverse needs. Fast delivery, almost no delays, greatly enhances our competitiveness. Professional technical support makes cooperation smooth. They're a reliable partner."
    AutoParts Pro
    Sr. Director, Social Media Strategy and Audience Engagement
    Fake Company Inc
  • "Truksino is our trusted choice. Their competitive pricing saves costs. Professional technical support resolves issues quickly. The user - friendly website enables efficient procurement. Working with them makes our business run smoothly."
    Global Auto Supplies
    Sr. Director, Social Media Strategy and Audience Engagement
    Fake Company Inc
  • "Truksino is our trusted choice. Their competitive pricing saves costs. Professional technical support resolves issues quickly. The user - friendly website enables efficient procurement. Working with them makes our business run smoothly."
    Eco - Drive Auto Parts
    Sr. Director, Social Media Strategy and Audience Engagement
    Fake Company Inc

Frequently Asked Questions about Truksino Auto Parts Purchasing

During the process of cooperating with Truksino to purchase auto parts, you may encounter various problems. This section aims to answer some common questions, helping you carry out your purchasing business more smoothly and understand our products and services in - depth.

How do you ensure the quality of your auto parts?

We adopt a strict quality control system. Each link, from raw material procurement, manufacturing to finished product delivery, goes through multiple inspection processes. All parts are made of high - quality materials and produced in accordance with international and industry standards. Some products have also passed relevant authoritative certifications to ensure reliable quality.

How long does your delivery usually take?

By optimizing supply chain management, we establish long - term cooperative relationships with many high - quality suppliers to achieve large - scale procurement, thus reducing costs. At the same time, we streamline internal operation processes and reduce unnecessary expenses, and pass on these cost advantages to customers, providing you with auto parts with extremely high cost - effectiveness.

Is there a guarantee?

We promise a delivery rate of up to 99.99%. Most regular orders will be shipped within [2] working days after payment confirmation. The specific delivery time will vary depending on product types, inventory status, and shipping distance. We cooperate with many well - known logistics companies and will choose the most suitable logistics method according to your needs to ensure the safe and timely delivery of goods.

What is your after - sales service policy?

If the parts you receive have quality problems, we provide unconditional return and exchange services under the premise of complying with the return and exchange policy. For non - human - caused damage problems that occur during use, we will also provide solutions such as repair, replacement, or compensation according to the actual situation to ensure that your rights and interests are protected.

Do you provide rare parts for specific vehicle models?

Yes, Truksino has a wide variety of products and an extensive supplier network. Even for rare parts of specific vehicle models, we have the ability to provide them for you through customization services or global procurement channels. You just need to provide detailed vehicle model and part information, and we will do our best to meet your needs.

Can you provide technical support if we encounter problems during the installation or use of the parts?

Of course, we have an experienced technical support team ready to assist you at any time. Whether it's installation guidance, troubleshooting, or technical consultation, you can contact us via phone, email, or online customer service. We will respond as soon as possible and provide detailed solutions.

Can you provide technical support if we encounter problems during the installation or use of the parts?

Of course, we have an experienced technical support team ready to assist you at any time. Whether it's installation guidance, troubleshooting, or technical consultation, you can contact us via phone, email, or online customer service. We will respond as soon as possible and provide detailed solutions.

Is it safe to purchase on your website? How do you ensure the security of transaction information?

We attach great importance to the security of website purchases. We use advanced encryption technology to ensure that all transaction information you submit on the website, such as personal information and payment information, is strictly protected. At the same time, our website follows relevant security standards and specifications and undergoes regular security inspections and maintenance to provide you with a safe and reliable purchasing environment.
1236 Melville Road, Los Angeles, CA 67890
(86) 17717714145
(86) 17717714145

Request A Free Quote

Questions, comments? You tell us. We listen.
Free samples are available for you.
Contact Form Demo
databaserocketthumbs-up
