Specialized in6001-H-2z Deep Groove Ball Bearingand related product development and production

Samples: Available / Stock: Sufficient
Estimated delivery time: 3-5 days

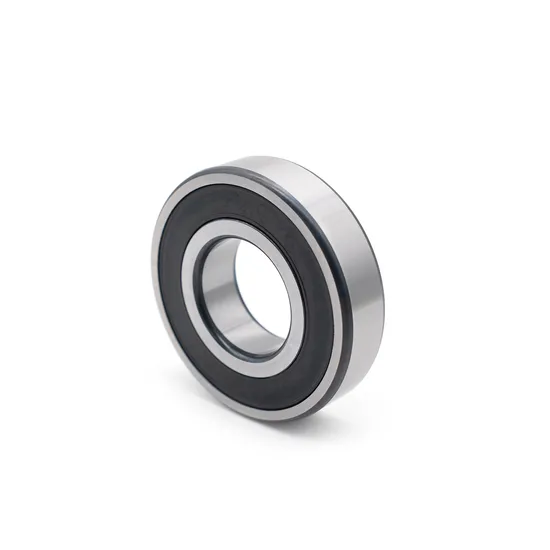

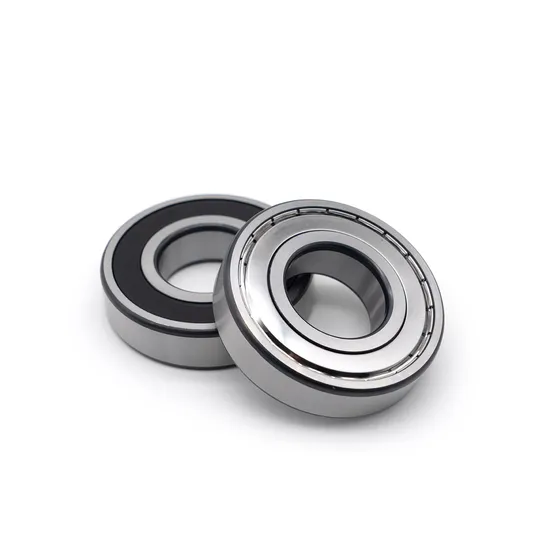

6001-H-2z Deep Groove Ball Bearing
6001-H-2z Deep Groove Ball Bearing - 图片 2
6001-H-2z Deep Groove Ball Bearing - 图片 3
6001-H-2z Deep Groove Ball Bearing - 图片 4

Product Parameters

Customization: Available Contact Angle: 0 Aligning: 0

Basic Info.

Model NO.
6001-H-2Z

Separated
Unseparated

Rows Number
Single

Load Direction
Radial Bearing

Material
Bearing Steel

Product Name
6001-H-2z

Width
8 mm

Bore Diameter
12 mm

Outside Diameter
28 mm

Weight
0.021 Kg

Seal Type
Open

Cage
Steel Cage.Copper Cage.Nylon Cage

Feature
Long Life High Speed

Transport Package
1.Industrial Packaging: Plastic Tube (10PCS in One

Specification
14*17*47mm

Trademark
TFN

Origin
Shangdong China

HS Code
8482102000

Production Capacity
5000000/Year

Packaging & Delivery

Package Size
20.00cm * 30.00cm * 10.00cm

Package Gross Weight
1.000kg

Product Description

                        6001-H-2Z Single row deep groove ball bearings



6001-H-2z Deep Groove Ball Bearing



Main Dimensions & Performance Data
d
12 mm
Bore diameter
D
28 mm
Outside diameter
B
8 mm
Width
Cr
5,400 N
Basic dynamic load rating, radial
C0r
2,360 N
Basic static load rating, radial
Cur
126 N
Fatigue load limit, radial
nG
32,000 1/min
Limiting speed
nϑr
23,200 1/min
Reference speed
≈m
0.021 kg
Weight

Mounting dimensions
da min
14 mm
Minimum diameter shaft shoulder
Da max
26 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius

Dimensions
rmin
0.3 mm
Minimum chamfer dimension
D1
23.8 mm
Shoulder diameter outer ring
D2
25.34 mm
Caliber diameter outer ring
d1
17.4 mm
Shoulder diameter inner ring
d2
16.8 mm
Caliber diameter inner ring

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Calculation factors
f0
13.2
Calculation factor



6001-H-2z Deep Groove Ball Bearing



Certificate

6001-H-2z Deep Groove Ball Bearing

Packing6001-H-2z Deep Groove Ball Bearing

FAQ

Q:Why choose us?

A:1. We are professional,have factory in shandong for many years.

   2. We are experienced for 10 years.

   3. We can offer a various kind of bearing with high quality:Z1V1,Z2V2,Z3V3 and best price



Q:How is the quality of your products?

A:The same quality, we have lower price.The same price,we have better quality.



Q:Except Deep groove ball bearing,what other main bearing do you have?

A:Taper Roller Bearing , Cylindrical roller bearing,Thrust roller bearing,Spherical roller bearing,Angular contact      ball bearing etc.



Q:Can I get 6303 bearing free samples?

A:We will charge a little sample fee for our regular designs or customized ones, These charges will be refunded to you when your mass production order is confirmed.



Q:Can you make the products as our requirement?

A:We have more than 10years' OEM experience. We supply products fo more than 300 automobile parts factories.
